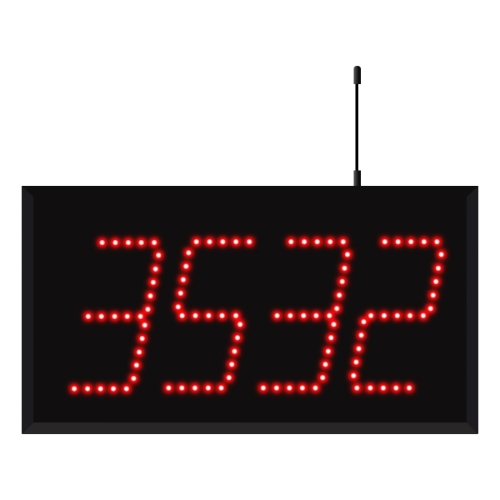

The Model 3540 is a single-number, 4-digit wireless Visual-Pager® display that is operated by the MultiPage Transmitter, which has a 1/4- to 1/2-mile range. This UHF display has 5.5-inch tall digits viewable up to 125 feet and is encased in an extruded-aluminum case. (Also works in conjunction with our wireless multi-number displays and the B3611 Multi-Number Transmitter.)
* Limited Warranty Information -Microframe extends a 1-year limited warranty on all products which covers failure, parts, and service. During the warranty period, if a product fails or malfunctions, they will repair or replace the unit at no charge if it is due to product failure and not damage or abuse. After the 1-year limited warranty is expired, all repairs will be subject to a minimal repair fee. Free customer service is available to all customers Monday-Friday from 8:00 AM-5:00 PM, CST time by calling their toll-free number, 1-800-635-3811.
Features
The UHF Displays are designed to work best with the Microframe MultiPage System. The Displays have two modes: 1) As a "Visual-Pager," the Display will store and rotate up to 20 numbers at a time. Numbers can be entered and deleted from the Display using the MultiPage Transmitter. 2) The Display can also be used as a "Pager Confirmation System." In this mode, the Display shows the number of every Vibrating Pager that has been paged.
Operation
Mode 1) Using the MultiPage Transmitter, simply type in a number and press "ENTER" to send that number to the Display. To delete a number from the Display, simply press "CANCEL" then type the number followed by "ENTER." Mode 2) The number of any Pager that is paged shows on the Display. No operator intervention is required.
